US 5 K 50 VA4571 6341221 OBO BETTERMANN Suspended support with welded head plate, 50x50x500, Stained, Stainl..
US 5 K 50 VA4571
6341221
OBO BETTERMANN
1 Pcs.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

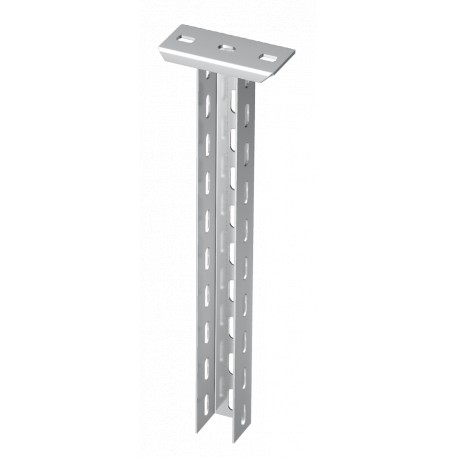

A stainless steel suspended support with a welded head plate by Obo Bettermann built to withstand harsh corrosive conditions in industrial plants. It serves as a strong vertical anchor for suspending cable trays safely above plant floors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bracket length 200: 5,75 kN
- Bracket length 400: 3,1 kN
- Bracket length 600: 2,2 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 8,6841 kg CO2e / 1 Piece
- Colour: stainless steel
- Dimension: 50x50x500
- Height: 50 mm
- Length: 500 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4571
- Material thickness: 2,5 mm
- Maximum tensile load: 10 kN
- Surface: Bright, treated
- Version for: U profile
- Width: 50 mm
More info
▲| Bracket length 200 | 5,75 kN |
|---|---|
| Bracket length 400 | 3,1 kN |
| Bracket length 600 | 2,2 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 8,6841 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | 50x50x500 |
| Height | 50 mm |
| Length | 500 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Stainless steel 1.4571 |
| Material thickness | 2,5 mm |
| Maximum tensile load | 10 kN |
| Surface | Bright, treated |
| Version for | U profile |
| Width | 50 mm |
