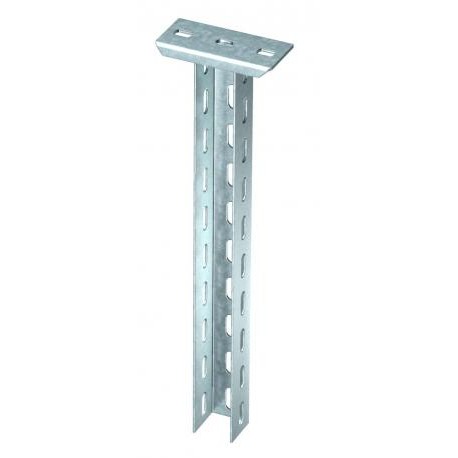

OBO BETTERMANN US 5 K 40 FT US 5 K 40 FT 6341543 OBO BETTERMANN Suspended support with welded head plate, 50x50x400, Hot-dip galvanised,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 5 K 40 FT 6341543 OBO BETTERMANN Suspended support with welded head plate, 50x50x400, Hot-dip galvanised,..

US 5 K 40 FT

6341543

OBO BETTERMANN

1 Pcs.

Suspended support with welded head plate, 50x50x400, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 5 support FT. U support of dimensions 50 x 50 mm with welded head plate.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number US 5 K 40 FT is a suspended support with welded head plate designed for mounting cable management systems and routing structural runs securely in industrial installations. This hardware component provides stable load-bearing support for cable trays and ladders attached to ceilings or walls. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bracket length 200: 5,75 kN
  • Bracket length 400: 3,1 kN
  • Bracket length 600: 2,2 kN
  • CO2 Footprint (GWP) Cradle-to-Gate: 3,1532 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 50x50x400
  • Dimension L: 400 mm
  • Height: 50 mm
  • Length: 400 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2,5 mm
  • Maximum tensile load: 10 kN
  • Surface: Hot-dip galvanised
  • Version for: U profile
  • Width: 50 mm

More info

▲
Bracket length 2005,75 kN
Bracket length 4003,1 kN
Bracket length 6002,2 kN
CO2 Footprint (GWP) Cradle-to-Gate3,1532 kg CO2e / 1 Piece
Colourzinc
Dimension50x50x400
Dimension L400 mm
Height50 mm
Length400 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2,5 mm
Maximum tensile load10 kN
SurfaceHot-dip galvanised
Version forU profile
Width50 mm
With toothingno
