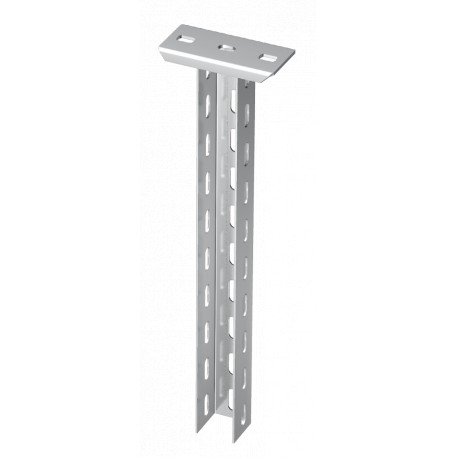

US 5 K 20 VA4571 6341209 OBO BETTERMANN Suspended support with welded head plate, 50x50x200, Stained, Stainl..
US 5 K 20 VA4571
6341209
OBO BETTERMANN
1 Pcs.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann US 5 K 20 VA4571 suspended support with welded head plate is designed to anchor cable support structures securely within harsh industrial settings. These metal hangers facilitate clean vertical drops from overhead structural steel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bracket length 200: 5,75 kN
- Bracket length 400: 3,1 kN
- Bracket length 600: 2,2 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 4,5946 kg CO2e / 1 Piece
- Colour: stainless steel
- Dimension: 50x50x200
- Height: 50 mm
- Length: 200 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4571
- Material thickness: 2,5 mm
- Maximum tensile load: 10 kN
- Surface: Bright, treated
- Version for: U profile
- Width: 50 mm
More info
▲| Bracket length 200 | 5,75 kN |
|---|---|
| Bracket length 400 | 3,1 kN |
| Bracket length 600 | 2,2 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,5946 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | 50x50x200 |
| Height | 50 mm |
| Length | 200 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Stainless steel 1.4571 |
| Material thickness | 2,5 mm |
| Maximum tensile load | 10 kN |
| Surface | Bright, treated |
| Version for | U profile |
| Width | 50 mm |
