View larger
Images are for illustrative purposes only. Please refer to data sheet for details

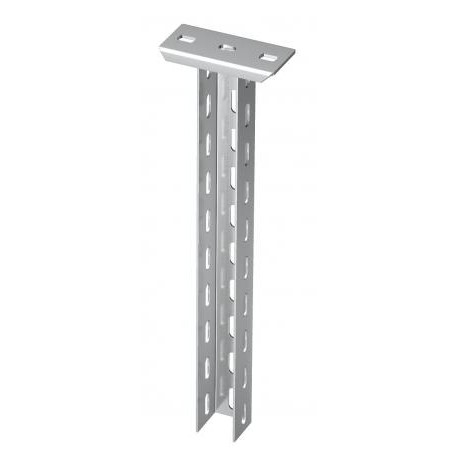

US 5 K 110VA4301 6341394 OBO BETTERMANN Suspended support with bolted headplate, 50x50x1100, Stained, Stainl..
US 5 K 110 A2
6341394
OBO BETTERMANN
1 Pcs.
Suspended support with bolted headplate, 50x50x1100, Stained, Stainless steel, grade 304, VA, 1.4301
US 5 support A2. Suspended support (U profile) with welded head plate.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bracket length 200 | 4 kN |
|---|---|
| Bracket length 400 | 2,2 kN |
| Bracket length 600 | 1,7 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 18,1826 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | 50x50x1100 |
| Height | 50 mm |
| Length | 1100 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Stainless steel 1.4301 |
| Material thickness | 2,5 mm |
| Maximum tensile load | 10 kN |
| Surface | Bright, treated |
| Version for | U profile |
| Width | 50 mm |
