US 5 80 FT 6340954 OBO BETTERMANN U support 3-sided perforated, 50x50x800, Hot-dip galvanised, DIN EN ISO 14..
US 5 80 FT
6340954
OBO BETTERMANN
1 Pcs.
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

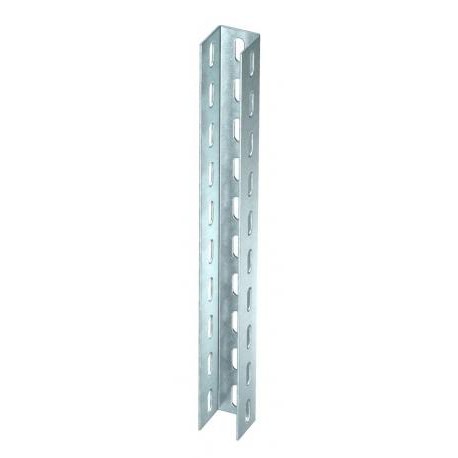

U support 3-sided perforated manufactured by Obo Bettermann, part number US 5 80 FT, serves as a versatile bracket designed to anchor heavy cable trays and electrical support structures securely to walls or floors. These structural channels ensure reliable load management. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 4,9683 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: 50 x 50 x 2,5
- Dimension: 50x50x800
- Dimension L: 800 mm
- EPD article: yes
- Height: 50 mm
- Length: 800 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2,5 mm
- Profile shape: U profile
- Slot width: 45 mm
- Static value A: 2,74 cm²
- Static value ly: 8,32 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 4,9683 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 50 x 50 x 2,5 |
| Dimension | 50x50x800 |
| Dimension L | 800 mm |
| EPD article | yes |
| Height | 50 mm |
| Length | 800 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | U profile |
|---|---|
| Slot width | 45 mm |
| Static value A | 2,74 cm² |
| Static value ly | 8,32 cm⁴ |
| Static value lz | 12,53 cm⁴ |
| Static value Wy | 2,61 cm³ |
| Static value Wz | 5,01 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 50 mm |
| With toothing | no |
