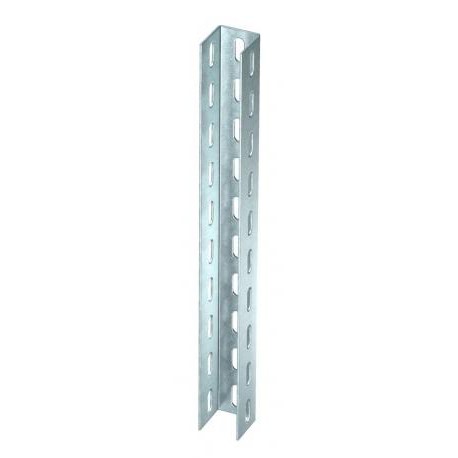

OBO BETTERMANN US 5 70 FT US 5 70 FT 6340950 OBO BETTERMANN U support 3-sided perforated, 50x50x700, Hot-dip galvanised, DIN EN ISO 14.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 5 70 FT 6340950 OBO BETTERMANN U support 3-sided perforated, 50x50x700, Hot-dip galvanised, DIN EN ISO 14..

US 5 70 FT

6340950

OBO BETTERMANN

1 Pcs.

U support 3-sided perforated, 50x50x700, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 5 support FT. U support in fixed lengths. Dimensions 50 x 50 mm.

Automation > Mounting rail/-profile
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number US 5 70 FT is a U support 3-sided perforated bracket engineered to offer reliable mounting strength for cable containment systems in industrial plants and commercial infrastructures. These structural elements serve as secure hanging or anchoring points that maintain proper alignment and elevation of cable trays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 4,354 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 50x50x700
  • Dimension: 50 x 50 x 2,5
  • Dimension L: 700 mm
  • EPD article: yes
  • Height: 50 mm
  • Length: 700 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2,5 mm
  • Profile shape: U profile
  • Slot width: 45 mm
  • Static value A: 2,74 cm²
  • Static value ly: 8,32 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate4,354 kg CO2e / 1 Piece
Colourzinc
Dimension50x50x700
Dimension50 x 50 x 2,5
Dimension L700 mm
EPD articleyes
Height50 mm
Length700 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2,5 mm
Profile shapeU profile
Slot width45 mm
Static value A2,74 cm²
Static value ly8,32 cm⁴
Static value lz12,53 cm⁴
Static value Wy2,61 cm³
Static value Wz5,01 cm³
SurfaceHot-dip galvanised
Type of perforation3 sides perforated
Version forSingle profile
Width50 mm
With toothingno
