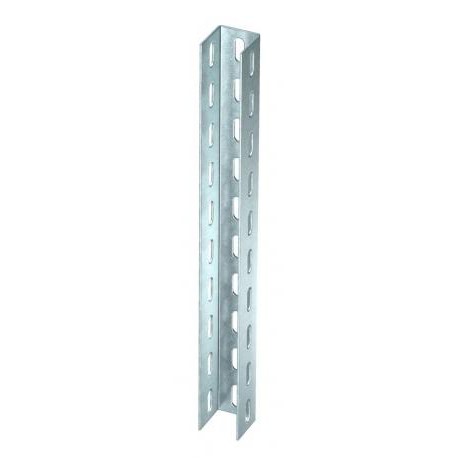

US 5 600 FT 6340997 OBO BETTERMANN U support 3-sided perforated, 50x50x6000, Hot-dip galvanised, DIN EN ISO ..
US 5 600 FT
6340997
OBO BETTERMANN
1 Pcs.
U support 3-sided perforated, 50x50x6000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
US 5 support FT. U support in fixed lengths. Dimensions 50 x 50 mm.
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann U support 3-sided perforated (part number US 5 600 FT) provides a high-capacity structural backbone for mounting industrial cable routing systems across large facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 34,5288 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: 50x50x6000
- Dimension: 50 x 50 x 2,5
- Dimension L: 6000 mm
- Height: 50 mm
- Length: 6000 mm
- Maintain electrical functions: no
- Material: Steel
- Material thickness: 2,5 mm
- Profile shape: U profile
- Slot width: 45 mm
- Static value A: 2,74 cm²
- Static value ly: 8,32 cm⁴
- Static value lz: 12,53 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 34,5288 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 50x50x6000 |
| Dimension | 50 x 50 x 2,5 |
| Dimension L | 6000 mm |
| Height | 50 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | U profile |
| Slot width | 45 mm |
|---|---|
| Static value A | 2,74 cm² |
| Static value ly | 8,32 cm⁴ |
| Static value lz | 12,53 cm⁴ |
| Static value Wy | 2,61 cm³ |
| Static value Wz | 5,01 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 50 mm |
| With toothing | no |
