View larger
Images are for illustrative purposes only. Please refer to data sheet for details

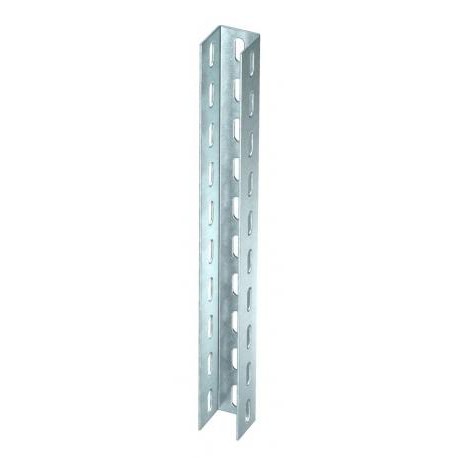

US 5 60 FT 6340946 OBO BETTERMANN U support 3-sided perforated, 50x50x600, Hot-dip galvanised, DIN EN ISO 14..
US 5 60 FT
6340946
OBO BETTERMANN
1 Pcs.
U support 3-sided perforated, 50x50x600, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
US 5 support FT. U support in fixed lengths. Dimensions 50 x 50 mm.
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 3,5466 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 50x50x600 |
| Dimension | 50 x 50 x 2,5 |
| Dimension L | 600 mm |
| EPD article | yes |
| Height | 50 mm |
| Length | 600 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | U profile |
|---|---|
| Slot width | 45 mm |
| Static value A | 2,74 cm² |
| Static value ly | 8,32 cm⁴ |
| Static value lz | 12,53 cm⁴ |
| Static value Wy | 2,61 cm³ |
| Static value Wz | 5,01 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 50 mm |
| With toothing | no |
