View larger
Images are for illustrative purposes only. Please refer to data sheet for details

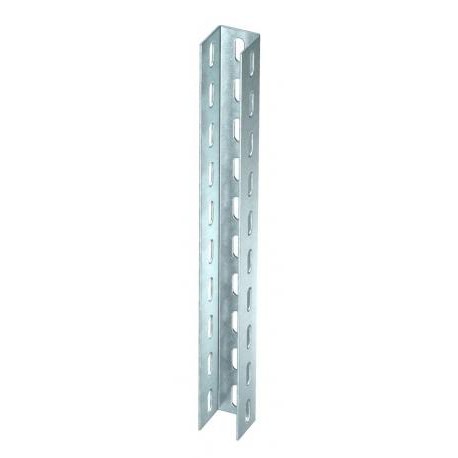

US 5 50 FT 6340938 OBO BETTERMANN U support 3-sided perforated, 50x50x500, Hot-dip galvanised, DIN EN ISO 14..
US 5 50 FT
6340938
OBO BETTERMANN
1 Pcs.
U support 3-sided perforated, 50x50x500, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
U-Profile US 5 50 FT, 3-Sided Perforated 50x50x500 Steel, St, Hot-dipped Galvanized, DIN EN ISO 1461
US 5 FT profile. U-shaped profile. Dimensions 50 x 50 mm.
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 45.
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 500 mm |
| Width (EF000008) | 50 mm |
| Height (EF000040) | 50 mm |
| Material thickness (EF000386) | 2.5 mm |
| Profile shape (EF005179) | U-profile |
| Type of perforation (EF004147) | 3 sides perforated |
| With toothing (EF000571) | No |
| Area moment of inertia Iy (EF012513) | 8.32 cm4 |
| Area of inertia Iz (EF012514) | 12.53 cm4 |
| Moment of resistance Wy (EF012503) | 2.61 cm³ |
| Moment of resistance Wz (EF012504) | 5.01 cm³ |
| Suitable for circuit integrity (EF007806) | Yes |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 1.33 kg |
