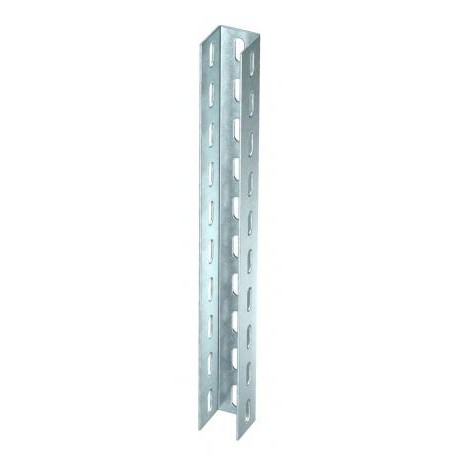

OBO BETTERMANN US 5 300 FT US 5 300 FT 6340989 OBO BETTERMANN U support 3-sided perforated, 50x50x3000, Hot-dip galvanised, DIN EN ISO .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 5 300 FT 6340989 OBO BETTERMANN U support 3-sided perforated, 50x50x3000, Hot-dip galvanised, DIN EN ISO ..

US 5 300 FT

6340989

OBO BETTERMANN

1 Pcs.

U support 3-sided perforated, 50x50x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 5 support FT. U support in fixed lengths. Dimensions 50 x 50 mm.

Automation > Mounting rail/-profile
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann US 5 300 FT is a U support 3-sided perforated built to anchor robust industrial cable tray networks, control panels, and overhead raceways. These structural channels provide reliable load-bearing paths throughout complex plant electrical installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 16,9243 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 50x50x3000
  • Dimension: 50 x 50 x 2,5
  • Dimension L: 3000 mm
  • Height: 50 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Material thickness: 2,5 mm
  • Profile shape: U profile
  • Slot width: 45 mm
  • Static value A: 2,74 cm²
  • Static value ly: 8,32 cm⁴
  • Static value lz: 12,53 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate16,9243 kg CO2e / 1 Piece
Colourzinc
Dimension50x50x3000
Dimension50 x 50 x 2,5
Dimension L3000 mm
Height50 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Material thickness2,5 mm
Profile shapeU profile
Slot width45 mm
Static value A2,74 cm²
Static value ly8,32 cm⁴
Static value lz12,53 cm⁴
Static value Wy2,61 cm³
Static value Wz5,01 cm³
SurfaceHot-dip galvanised
Type of perforation3 sides perforated
Version forSingle profile
Width50 mm
With toothingno
