US 5 30 FT 6340903 OBO BETTERMANN U support 3-sided perforated, 50x50x300, Hot-dip galvanised, DIN EN ISO 14..

US 5 30 FT

6340903

OBO BETTERMANN

1 Pcs.

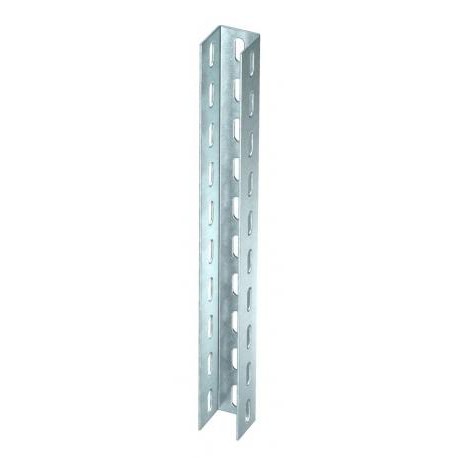

U support 3-sided perforated, 50x50x300, Hot-dip galvanised, DIN EN ISO 1461, Steel, St U-profile US 5 30 FT, perforated on 3 sides 50x50x300 Steel, St, Hot dipped galvanized, DIN EN ISO 1461 US 5-Stem FT

Automation > Mounting rail/-profile
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A U support from Obo Bettermann is a heavy-duty metal channel engineered to provide robust vertical or horizontal framing for cable trays, industrial piping, and electrical distribution apparatus. This hot-dip galvanized steel U 5 30 FT profile delivers reliable load-bearing stability and corrosion resistance in demanding operational environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 300 mm
  • Width (EF000008): 50 mm
  • Height (EF000040): 50 mm
  • Material thickness (EF000386): 2.5 mm
  • Profile shape (EF005179): U-profile
  • Type of perforation (EF004147): 3 sides perforated
  • With toothing (EF000571): No
  • Area moment of inertia Iy (EF012513): 8.32 cm4
  • Area of inertia Iz (EF012514): 12.53 cm4
  • Moment of resistance Wy (EF012503): 2.61 cm³
  • Moment of resistance Wz (EF012504): 5.01 cm³
  • Suitable for circuit integrity (EF007806): Yes
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Weight (EF000167): 0.72 kg

More info

▲
For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 45.
