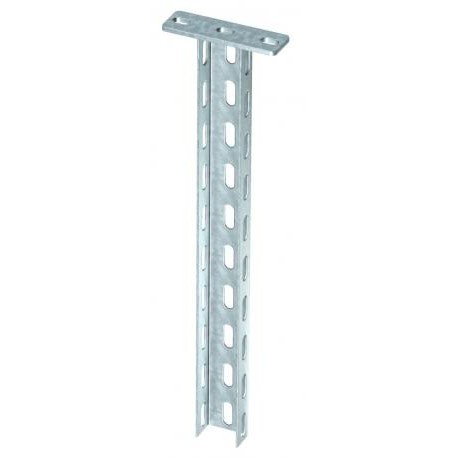

US 3 K 90 FT 6342366 OBO BETTERMANN Suspended support with bolted headplate, 50x30x900, Hot-dip galvanised, ..
US 3 K 90 FT
6342366
OBO BETTERMANN
1 Pcs.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann suspended support with a bolted headplate built to sustain cable support systems across complex industrial facilities. Installers use these durable profiles to construct stable vertical drop points for comprehensive cable routing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bracket length 200: 2,1 kN
- Bracket length 400: 1,1 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 3,5448 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: 50x30x900
- Dimension L: 900 mm
- Height: 30 mm
- Length: 900 mm
- Length: 2,95 ft
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2 mm
- Maximum tensile load: 5 kN
- Plate thickness: 0,08 in
- Surface: Hot-dip galvanised
- Version for: U profile
More info
▲| Bracket length 200 | 2,1 kN |
|---|---|
| Bracket length 400 | 1,1 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,5448 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 50x30x900 |
| Dimension L | 900 mm |
| Height | 30 mm |
| Length | 900 mm |
| Length | 2,95 ft |
| Maintain electrical functions | yes |
|---|---|
| Material | Steel |
| Material thickness | 2 mm |
| Maximum tensile load | 5 kN |
| Plate thickness | 0,08 in |
| Surface | Hot-dip galvanised |
| Version for | U profile |
| Width | 50 mm |
| With toothing | no |
