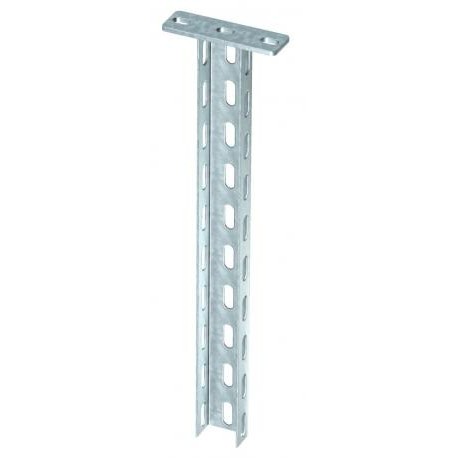

OBO BETTERMANN US 3 K 70 FT US 3 K 70 FT 6342362 OBO BETTERMANN Suspended support with bolted headplate, 50x30x700, Hot-dip galvanised, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 3 K 70 FT 6342362 OBO BETTERMANN Suspended support with bolted headplate, 50x30x700, Hot-dip galvanised, ..

US 3 K 70 FT

6342362

OBO BETTERMANN

1 Pcs.

Suspended support with bolted headplate, 50x30x700, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 3 support FT. Suspended support (U profile) of dimensions 50 x 30 mm with welded head plate.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A suspended support with bolted headplate functions as a primary mounting fixture in industrial overhead cable routing systems, transferring loads safely to building structures. Manufactured by Obo Bettermann as part number US 3 K 70 FT, it ensures reliable suspension for cable ladders and trays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bracket length 200: 2,1 kN
  • Bracket length 400: 1,1 kN
  • CO2 Footprint (GWP) Cradle-to-Gate: 3,0052 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 50x30x700
  • Dimension L: 700 mm
  • Height: 30 mm
  • Length: 700 mm
  • Length: 2,29 ft
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2 mm
  • Maximum tensile load: 5 kN
  • Plate thickness: 0,08 in
  • Surface: Hot-dip galvanised
  • Version for: U profile

More info

▲
Bracket length 2002,1 kN
Bracket length 4001,1 kN
CO2 Footprint (GWP) Cradle-to-Gate3,0052 kg CO2e / 1 Piece
Colourzinc
Dimension50x30x700
Dimension L700 mm
Height30 mm
Length700 mm
Length2,29 ft
Maintain electrical functionsyes
MaterialSteel
Material thickness2 mm
Maximum tensile load5 kN
Plate thickness0,08 in
SurfaceHot-dip galvanised
Version forU profile
Width50 mm
With toothingno
