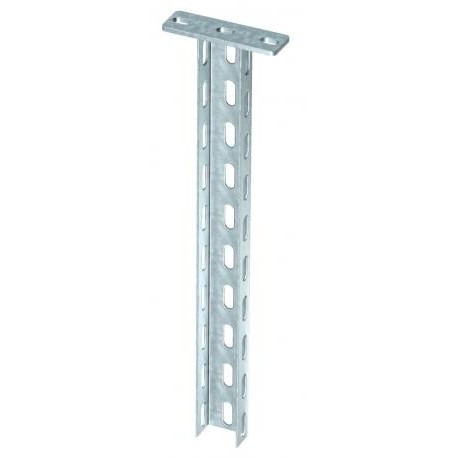

US 3 K 60 FT 6342359 OBO BETTERMANN Suspended support with bolted headplate, 50x30x600, Hot-dip galvanised, ..
US 3 K 60 FT
6342359
OBO BETTERMANN
1 Pcs.
Suspended support with bolted headplate, 50x30x600, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
US 3 support FT. Suspended support (U profile) of dimensions 50 x 30 mm with welded head plate.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bracket length 200 | 2,1 kN |
|---|---|
| Bracket length 400 | 1,1 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,5154 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 50x30x600 |
| Dimension L | 600 mm |
| Height | 30 mm |
| Length | 1,96 ft |
| Length | 600 mm |
| Maintain electrical functions | yes |
|---|---|
| Material | Steel |
| Material thickness | 2 mm |
| Maximum tensile load | 5 kN |
| Plate thickness | 0,08 in |
| Surface | Hot-dip galvanised |
| Version for | U profile |
| Width | 50 mm |
| With toothing | no |
