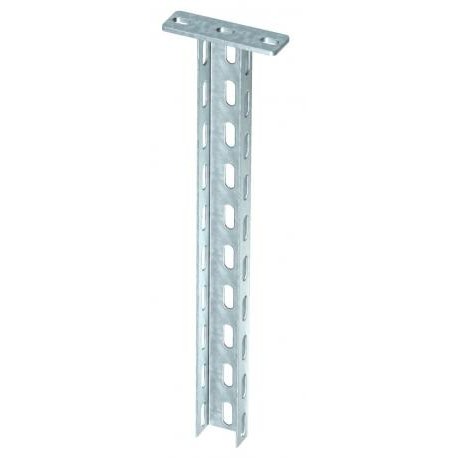

US 3 K 30 FT 6342353 OBO BETTERMANN Suspended support with bolted headplate, 50x30x300, Hot-dip galvanised, ..
US 3 K 30 FT
6342353
OBO BETTERMANN
1 Pcs.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann suspended support with bolted headplate, 50x30x300, Hot-dip galvanised, .. functions as a rigid mounting bracket designed to hold cable trays and ladder systems securely away from walls or ceilings. Support brackets provide stable load-bearing points for industrial electrical infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Length (EF001438): 300 mm
- Profile width (EF006158): 50 mm
- Profile height (EF006159): 30 mm
- Model (EF000010): U-profile
- Load bearing capacity (EF002918): 5 kN
- Suitable for circuit integrity (EF007806): Yes
- Material (EF002169): Steel
- Surface protection (EF000139): Hot dip galvanized
- Weight (EF000167): 0.64 kg
More info
▲| Bracket length 200 | 2,7 kN |
|---|---|
| Bracket length 400 | 1,5 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5179 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 50x30x300 |
| Dimension L | 300 mm |
| Height | 30 mm |
| Length | 0,98 ft |
| Length | 300 mm |
| Maintain electrical functions | yes |
|---|---|
| Material | Steel |
| Material thickness | 2 mm |
| Maximum tensile load | 5 kN |
| Plate thickness | 0,08 in |
| Surface | Hot-dip galvanised |
| Version for | U profile |
| Width | 50 mm |
| With toothing | no |
