View larger
Images are for illustrative purposes only. Please refer to data sheet for details

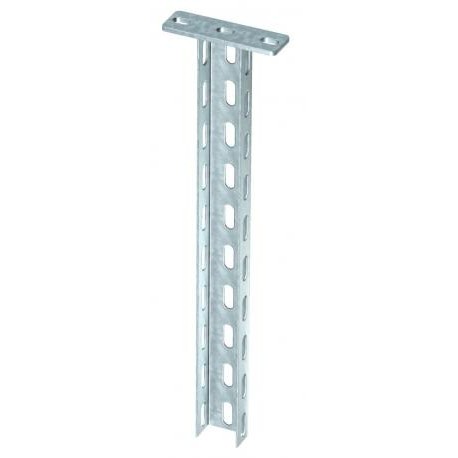

US 3 K 20 FT 6342351 OBO BETTERMANN Suspended support with bolted headplate, 50x30x200, Hot-dip galvanised, ..
US 3 K 20 FT
6342351
OBO BETTERMANN
1 Pcs.
Suspended support with bolted headplate, 50x30x200, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
US 3 K 20 FT Bracket, with welded head 50x30x200 Steel, St, Hot dipped galvanized, DIN EN ISO 1461
US 3 FT hanging profile. Hanging support (U-profile) measuring 50 x 30 mm with welded head.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
For fastening to horizontal concrete ceilings and steel girders. For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 25.
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 200 mm |
| Profile width (EF006158) | 50 mm |
| Profile height (EF006159) | 30 mm |
| Model (EF000010) | U-profile |
| Load bearing capacity (EF002918) | 5 kN |
| Suitable for circuit integrity (EF007806) | Yes |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 0.51 kg |
