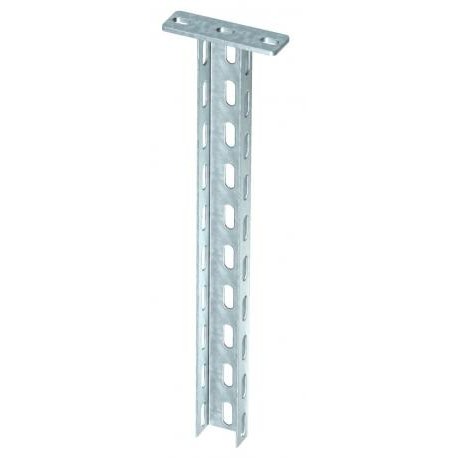

OBO BETTERMANN US 3 K 120 FT US 3 K 120 FT 6342372 OBO BETTERMANN Suspended support with bolted headplate, 50x30x1200, Hot-dip galvanised.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 3 K 120 FT 6342372 OBO BETTERMANN Suspended support with bolted headplate, 50x30x1200, Hot-dip galvanised..

US 3 K 120 FT

6342372

OBO BETTERMANN

1 Pcs.

Suspended support with bolted headplate, 50x30x1200, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 3 support FT. Suspended support (U profile) of dimensions 50 x 30 mm with welded head plate.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for structural mounting reliability, this suspended support with bolted headplate from Obo Bettermann helps create dependable overhead drop points for cable tray systems. Technicians utilize these supports to establish rigid mounting tiers in complex electrical routing layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bracket length 200: 2,1 kN
  • Bracket length 400: 1,1 kN
  • CO2 Footprint (GWP) Cradle-to-Gate: 4,5463 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 50x30x1200
  • Dimension L: 1200 mm
  • Height: 30 mm
  • Length: 1200 mm
  • Length: 3,93 ft
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2 mm
  • Maximum tensile load: 5 kN
  • Plate thickness: 0,08 in
  • Surface: Hot-dip galvanised
  • Version for: U profile

More info

▲
Bracket length 2002,1 kN
Bracket length 4001,1 kN
CO2 Footprint (GWP) Cradle-to-Gate4,5463 kg CO2e / 1 Piece
Colourzinc
Dimension50x30x1200
Dimension L1200 mm
Height30 mm
Length1200 mm
Length3,93 ft
Maintain electrical functionsyes
MaterialSteel
Material thickness2 mm
Maximum tensile load5 kN
Plate thickness0,08 in
SurfaceHot-dip galvanised
Version forU profile
Width50 mm
With toothingno
