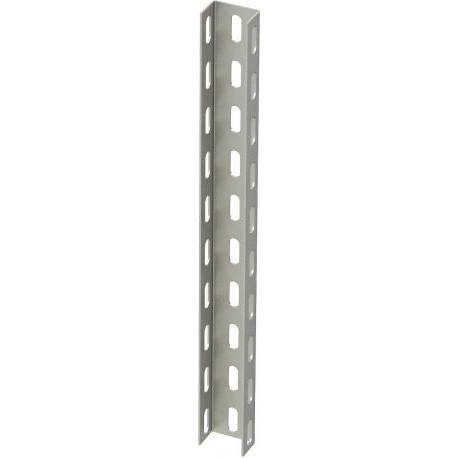

US 3 600 A2 6342468 OBO BETTERMANN U support 3-sided perforated, 50x30x6000, Stained, Stainless steel, grade..
US 3 600 A2
6342468
OBO BETTERMANN
1 Pcs.
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann U support (part number US 3 600 A2) is a perforated structural channel engineered for building dependable support frameworks in demanding industrial environments.
U-support channels serve as robust vertical columns or horizontal mounting beams for cable trays, junction boxes, and heavy electrical distribution hardware.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Length (EF001438): 6000 mm
- Width (EF000008): 50 mm
- Height (EF000040): 30 mm
- Material thickness (EF000386): 2 mm
- Profile shape (EF005179): U-profile
- Type of perforation (EF004147): 3 sides perforated
- With toothing (EF000571): No
- Area moment of inertia Iy (EF012513): 1.52 cm4
- Area of inertia Iz (EF012514): 5.72 cm4
- Moment of resistance Wy (EF012503): 0.7 cm³
- Moment of resistance Wz (EF012504): 2.29 cm³
- Suitable for circuit integrity (EF007806): No
- Material (EF002169): Stainless steel
- Material quality (EF001257): Rustproof and acidproof steel
- Weight (EF000167): 7.9 kg
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 46,6487 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | 30 x 50 x 2,0 |
| Dimension | 50x30x6000 |
| Height | 30 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Material thickness | 2 mm |
| Profile shape | U profile |
| Static value A | 1,42 cm² |
|---|---|
| Static value ly | 1,52 cm⁴ |
| Static value lz | 5,72 cm⁴ |
| Static value Wy | 0,7 cm³ |
| Static value Wz | 2,29 cm³ |
| Surface | Bright, treated |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 50 mm |
| With toothing | no |
