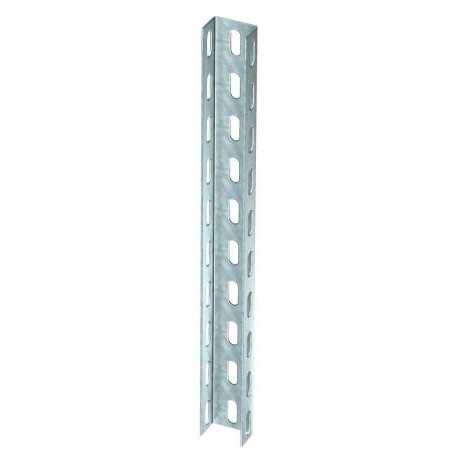

US 3 600 FS 6342345 OBO BETTERMANN U support 3-sided perforated, 50x30x6000, Strip-galvanised, DIN EN 10147,..
US 3 600 FS
6342345
OBO BETTERMANN
1 Pcs.
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann US 3 600 FS is a U support 3-sided perforated engineered to build structural framing systems, mounting brackets, and load-bearing routes for electrical installations. Rigid supports ensure stability across extensive cable pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 21,8686 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: 30 x 50 x 2,0
- Dimension: 50x30x6000
- Dimension L: 6000 mm
- Height: 30 mm
- Hole width: 11 mm
- Length: 6000 mm
- Maintain electrical functions: no
- Material: Steel
- Material thickness: 2 mm
- Profile shape: U profile
- Slot width: 30 mm
- Static value A: 1,42 cm²
- Static value ly: 1,52 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 21,8686 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 30 x 50 x 2,0 |
| Dimension | 50x30x6000 |
| Dimension L | 6000 mm |
| Height | 30 mm |
| Hole width | 11 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Material thickness | 2 mm |
| Profile shape | U profile |
|---|---|
| Slot width | 30 mm |
| Static value A | 1,42 cm² |
| Static value ly | 1,52 cm⁴ |
| Static value lz | 5,72 cm⁴ |
| Static value Wy | 0,7 cm³ |
| Static value Wz | 2,29 cm³ |
| Surface | Strip galvanized |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 50 mm |
| With toothing | no |
