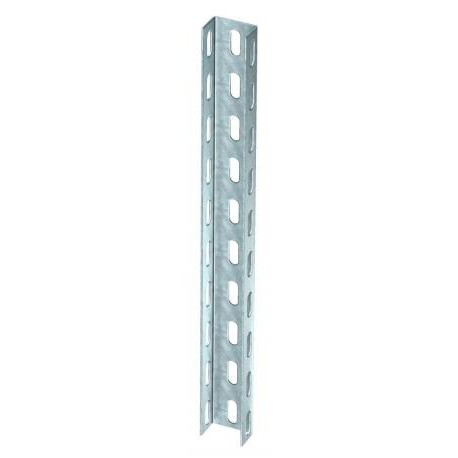

OBO BETTERMANN US 3 200 FS US 3 200 FS 6342338 OBO BETTERMANN U support 3-sided perforated, 50x30x2000, Strip-galvanised, DIN EN 10147,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 3 200 FS 6342338 OBO BETTERMANN U support 3-sided perforated, 50x30x2000, Strip-galvanised, DIN EN 10147,..

US 3 200 FS

6342338

OBO BETTERMANN

1 Pcs.

U support 3-sided perforated, 50x30x2000, Strip-galvanised, DIN EN 10147, Steel, St US 3 support FS. U support in fixed lengths. Dimensions 30 x 50 mm.

Automation > Mounting rail/-profile
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann U support 3-sided perforated (part number US 3 200 FS) acts as a structural mounting component for cable run installations, delivering secure attachment options along industrial walls and ceilings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 7,2893 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 30 x 50 x 2,0
  • Dimension: 50x30x2000
  • Dimension L: 2000 mm
  • Height: 30 mm
  • Hole width: 11 mm
  • Length: 2000 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2 mm
  • Profile shape: U profile
  • Slot width: 30 mm
  • Static value A: 1,42 cm²
  • Static value ly: 1,52 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate7,2893 kg CO2e / 1 Piece
Colourzinc
Dimension30 x 50 x 2,0
Dimension50x30x2000
Dimension L2000 mm
Height30 mm
Hole width11 mm
Length2000 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2 mm
Profile shapeU profile
Slot width30 mm
Static value A1,42 cm²
Static value ly1,52 cm⁴
Static value lz5,72 cm⁴
Static value Wy0,7 cm³
Static value Wz2,29 cm³
SurfaceStrip galvanized
Type of perforation3 sides perforated
Version forSingle profile
Width50 mm
With toothingno
