View larger
Images are for illustrative purposes only. Please refer to data sheet for details

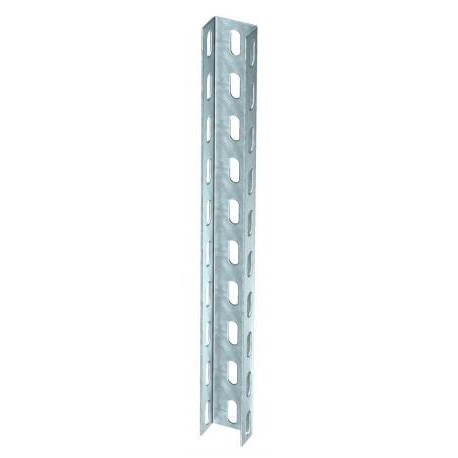

US 3 150 FS 6342328 OBO BETTERMANN U support 3-sided perforated, 50x30x1500, Strip-galvanised, DIN EN 10147,..
US 3 150 FS
6342328
OBO BETTERMANN
1 Pcs.
U support 3-sided perforated, 50x30x1500, Strip-galvanised, DIN EN 10147, Steel, St
U-profile US 3 150 FS, perforated on 3 sides 50x30x1500 Steel, St, strip galvanized, DIN EN 10346
US 3-Stem FS
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
U support in fixed lengths. Dimensions 30 x 50 mm
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 1500 mm |
| Width (EF000008) | 50 mm |
| Height (EF000040) | 30 mm |
| Material thickness (EF000386) | 2 mm |
| Profile shape (EF005179) | U-profile |
| Type of perforation (EF004147) | 3 sides perforated |
| With toothing (EF000571) | No |
| Area moment of inertia Iy (EF012513) | 1.52 cm4 |
| Area of inertia Iz (EF012514) | 5.72 cm4 |
| Moment of resistance Wy (EF012503) | 0.7 cm³ |
| Moment of resistance Wz (EF012504) | 2.29 cm³ |
| Suitable for circuit integrity (EF007806) | Yes |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 2 kg |
