View larger
Images are for illustrative purposes only. Please refer to data sheet for details

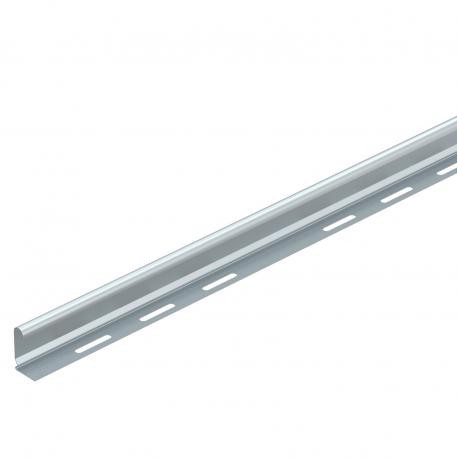

TSG 45 FS 6062033 OBO BETTERMANN Barrier strip f. cable tray and cable ladder, 45x3000, Strip-galvanised, DI..
TSG 45 FS
6062033
OBO BETTERMANN
3 m.
Barrier strip f. cable tray and cable ladder, 45x3000, Strip-galvanised, DIN EN 10147, Steel, St
TSG 45 FS partition wall, for cable tray 45x2995 Steel, St, galvanized in band, DIN EN 10346
Partition wall 45 FS
Cables > Separation plate for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Barrier strip for separation of cables of different voltages or functions.
| Feature Name | Feature Value |
|---|---|
| Partition height (EF005362) | 45 mm |
| Length (EF001438) | 3000 mm |
| Model (EF000010) | L-profile |
| Mounting perforation (EF008150) | No |
| Type of fastening (EF002442) | Screw fix |
| Suitable for wire mesh tray (EF005163) | Yes |
| Suitable for cable ladder (EF005165) | Yes |
| Suitable for cable tray (EF005166) | Yes |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Pre-galvanised |
