View larger
Images are for illustrative purposes only. Please refer to data sheet for details

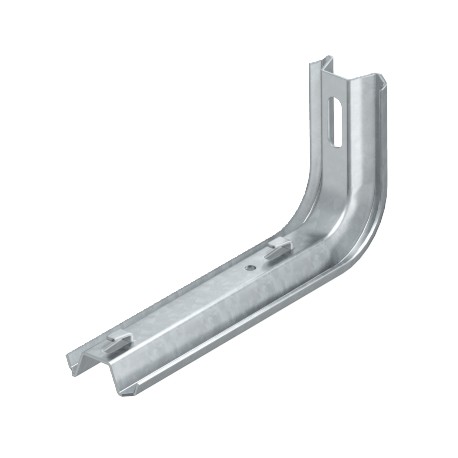

TPSAG 345 FS 6366066 OBO BETTERMANN TP wall and support bracket for mesh cable tray, B345mm, Strip-galvanise..
TPSAG 345 FS
6366066
OBO BETTERMANN
1 Pcs.
TP wall and support bracket for mesh cable tray, B345mm, Strip-galvanised, DIN EN 10147, Steel, St
TP support / wall and support bracket FS. TP bracket with clamping lugs for screwless mesh cable tray fastening.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,4011 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | B345mm |
| Dimension B | 60 mm |
| Dimension H | 120 mm |
| Dimension L | 345 mm |
| Dimension W | 250 mm |
| F in kN | 0,55 kN |
| for width max. | 300 mm |
| for width min. | 300 |
|---|---|
| Height | 120 mm |
| Length | 345 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Strip galvanized |
| Version for | Wall and support bracket |
| Width | 60 mm |
