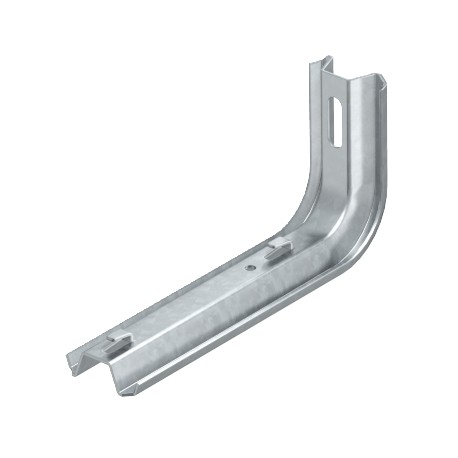

TPSAG 245 FT 6366139 OBO BETTERMANN TP wall and support bracket for mesh cable tray, B245mm, Hot-dip galvani..
TPSAG 245 FT
6366139
OBO BETTERMANN
1 Pcs.
TP wall and support bracket for mesh cable tray, B245mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
TP support / wall and support bracket FT. TP bracket with clamping lugs.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,0327 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | B245mm |
| Dimension B | 60 mm |
| Dimension H | 120 mm |
| Dimension L | 245 mm |
| Dimension W | 150 mm |
| F in kN | 0,9 kN |
| for width max. | 200 mm |
| for width min. | 200 |
|---|---|
| Height | 120 mm |
| Length | 245 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Hot-dip galvanised |
| Version for | Wall and support bracket |
| Width | 60 mm |
