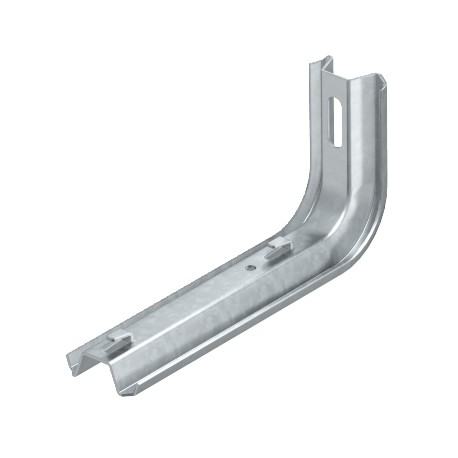

OBO BETTERMANN TPSAG 145 FT TPSAG 145 FT 6366131 OBO BETTERMANN TP wall and support bracket for mesh cable tray, B145mm, Hot-dip galvani.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TPSAG 145 FT 6366131 OBO BETTERMANN TP wall and support bracket for mesh cable tray, B145mm, Hot-dip galvani..

TPSAG 145 FT

6366131

OBO BETTERMANN

1 Pcs.

TP wall and support bracket for mesh cable tray, B145mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St TP TPSAG 145 FT bracket/bracket, for B145mm steel grid tray, St, hot-dip galvanized, DIN EN ISO 1461 TP bracket for wall or FT profile. TP square with staples.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

TP wall and support bracket for mesh cable tray from Obo Bettermann, cataloged as TPSAG 145 FT, offers dependable cantilever mounting for routing smaller wire mesh trays along vertical surfaces and industrial framing. These units facilitate neat organization of cabling networks in commercial build-outs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 145 mm
  • Width (EF000008): 120 mm
  • Height (EF000040): 60 mm
  • Suitable for cable support system width (EF008339): 100 mm
  • Model (EF000010): Cantilever arm for wall and channel mounting
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.
