View larger
Images are for illustrative purposes only. Please refer to data sheet for details

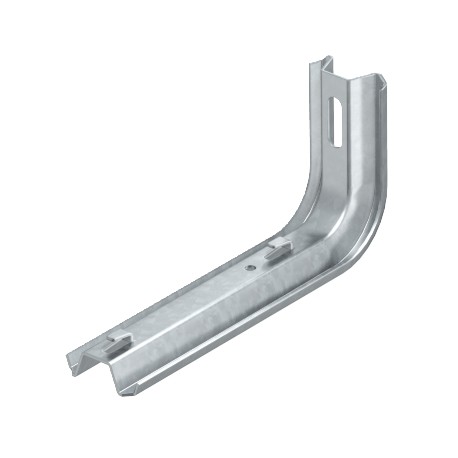

TPSAG 145 FS 6366015 OBO BETTERMANN TP wall and support bracket for mesh cable tray, B145mm, Strip-galvanise..
TPSAG 145 FS
6366015
OBO BETTERMANN
1 Pcs.
TP wall and support bracket for mesh cable tray, B145mm, Strip-galvanised, DIN EN 10147, Steel, St
TP TPSAG 145 FS bracket/bracket, for B145mm Steel, St, galvanized band, DIN EN 10346
TP support / wall and support bracket FS. TP bracket with clamping lugs for screwless mesh cable tray fastening.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,7629 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | B145mm |
| Dimension B | 60 mm |
| Dimension H | 120 mm |
| Dimension L | 145 mm |
| Dimension W | 50 mm |
| F in kN | 1,5 kN |
| for width max. | 100 mm |
| for width min. | 100 |
|---|---|
| Height | 120 mm |
| Length | 145 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Strip galvanized |
| Version for | Wall and support bracket |
| Width | 60 mm |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 145 mm |
| Width (EF000008) | 60 mm |
| Height (EF000040) | 120 mm |
| Suitable for cable support system width (EF008339) | 100 mm |
| Model (EF000010) | Cantilever arm for wall and channel mounting |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
