View larger
Images are for illustrative purposes only. Please refer to data sheet for details

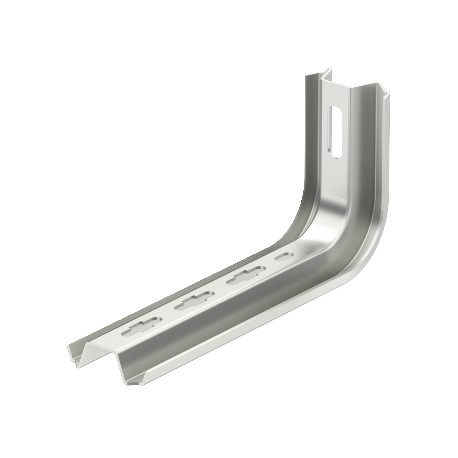

TPSA 345 A2 6364881 OBO BETTERMANN TP wall and support bracket for wall and support bracket, B345mm, Stainle..
TPSA 345 A2
6364881
OBO BETTERMANN
1 Pcs.
TP wall and support bracket for wall and support bracket, B345mm, Stainless steel, grade 304, VA, 1.4301
Wall arm+profile/profileTP TPSA 345 A2, application as profile and bracket B345mm Stainless steel 1.4301, A2, 1.4301, Polished, with post-treatment
TP support/wall and support bracket A2. TP support / bracket for the fastening to horizontal concrete ceilings and walls.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,9461 kg CO2e / 1 Piece |
|---|---|
| Colour | stainless steel |
| Dimension | B345mm |
| Dimension | 345x60x120 |
| Dimension B | 60 mm |
| Dimension H | 120 mm |
| Dimension L | 345 mm |
| F in kN | 0,55 kN |
| for width max. | 300 mm |
| for width min. | 300 |
|---|---|
| Height | 120 mm |
| Length | 345 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Rustproof steel, pickled | no |
| Surface | Bright, treated |
| Version for | Wall and support bracket |
| Width | 60 mm |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 345 mm |
| Width (EF000008) | 60 mm |
| Height (EF000040) | 120 mm |
| Suitable for cable support system width (EF008339) | 300 mm |
| Model (EF000010) | Cantilever arm for wall and channel mounting |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 (1.4301) |
| Surface protection (EF000139) | Untreated |
