View larger
Images are for illustrative purposes only. Please refer to data sheet for details

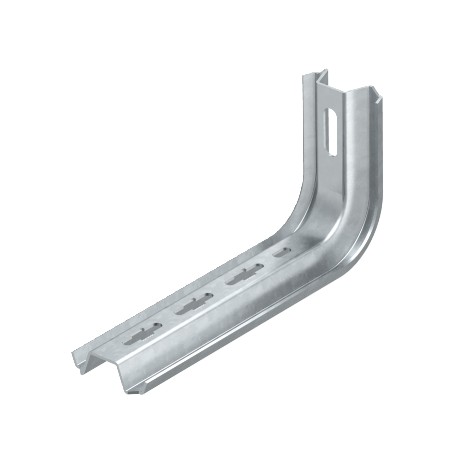

TPSA 245 FT 6364667 OBO BETTERMANN TP wall and support bracket for function maintenance, B245mm, Hot-dip gal..
TPSA 245 FT
6364667
OBO BETTERMANN
1 Pcs.
TP wall and support bracket for function maintenance, B245mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
TP support / wall and support bracket FT. TP support/bracket for fastening to horizontal concrete ceilings and walls.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,0317 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | B245mm |
| Dimension B | 60 mm |
| Dimension H | 120 mm |
| Dimension L | 245 mm |
| F in kN | 0,9 kN |
| for width max. | 200 mm |
| for width min. | 200 |
| Height | 120 mm |
|---|---|
| Length | 245 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Hot-dip galvanised |
| Version for | Wall and support bracket |
| Width | 60 mm |
