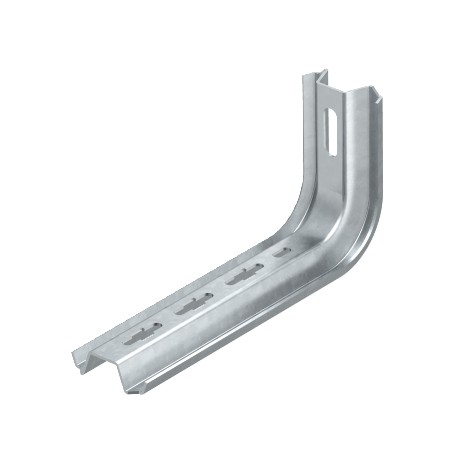

OBO BETTERMANN TPSA 145 FT TPSA 145 FT 6364659 OBO BETTERMANN TP wall and support bracket for function maintenance, B145mm, Hot-dip gal.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TPSA 145 FT 6364659 OBO BETTERMANN TP wall and support bracket for function maintenance, B145mm, Hot-dip gal..

TPSA 145 FT

6364659

OBO BETTERMANN

1 Pcs.

TP wall and support bracket for function maintenance, B145mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St TP support / wall and support bracket FT. TP support/bracket for fastening to horizontal concrete ceilings and walls.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

TP wall and support bracket for function maintenance TPSA 145 FT produced by Obo Bettermann is utilized to install reliable cable support paths that comply with stringent structural integrity requirements. This hardware is standard for organizing critical runs in industrial facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,8838 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B145mm
  • Dimension B: 60 mm
  • Dimension L: 145 mm
  • F in kN: 1,5 kN
  • for width max.: 100 mm
  • for width min.: 100
  • Height: 120 mm
  • Length: 145 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rustproof steel, pickled: no
  • Surface: Hot-dip galvanised
  • Version for: Wall and support bracket
  • Width: 60 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,8838 kg CO2e / 1 Piece
Colourzinc
DimensionB145mm
Dimension B60 mm
Dimension L145 mm
F in kN1,5 kN
for width max.100 mm
for width min.100
Height120 mm
Length145 mm
Maintain electrical functionsno
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forWall and support bracket
Width60 mm
