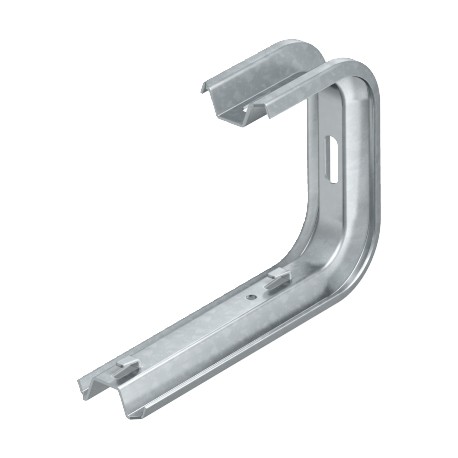

TPDG 345 FT 6365985 OBO BETTERMANN Wall and ceiling strap for mesh cable tray, B345mm, Hot-dip galvanised, D..
TPDG 345 FT
6365985
OBO BETTERMANN
5 Pcs.
Cables > Wall- and ceiling bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A wall and ceiling strap for mesh cable tray is designed to anchor wire mesh routing runs rigidly to building columns, walls, or ceilings. The Obo Bettermann TPDG 345 FT helps maintain correct spacing and provides secure mechanical stability for overhead cable pathways.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 1,7545 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: B345mm
- Dimension B: 345 mm
- Dimension L: 250 mm
- F in kN ceiling: 0,5 kN
- F in kN wall: 0,55 kN
- for width max.: 300 mm
- for width min.: 300
- Height: 60 mm
- Length: 175 mm
- Maintain electrical functions: no
- Material: Steel
- Suitable for cable ladder: no
- Suitable for cable tray: no
- Suitable for mesh cable tray: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,7545 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | B345mm |
| Dimension B | 345 mm |
| Dimension L | 250 mm |
| F in kN ceiling | 0,5 kN |
| F in kN wall | 0,55 kN |
| for width max. | 300 mm |
| for width min. | 300 |
| Height | 60 mm |
| Length | 175 mm |
|---|---|
| Maintain electrical functions | no |
| Material | Steel |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Suitable for mesh cable tray | yes |
| Surface | Hot-dip galvanised |
| Version for | Suspension bracket (C clamp) |
| Width | 345 mm |
