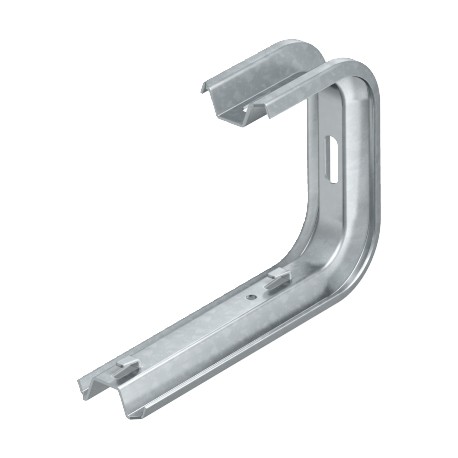

OBO BETTERMANN TPDG 345 FS TPDG 345 FS 6365949 OBO BETTERMANN Wall and ceiling strap for mesh cable tray, B345mm, Strip-galvanised, DIN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TPDG 345 FS 6365949 OBO BETTERMANN Wall and ceiling strap for mesh cable tray, B345mm, Strip-galvanised, DIN..

TPDG 345 FS

6365949

OBO BETTERMANN

5 Pcs.

Wall and ceiling strap for mesh cable tray, B345mm, Strip-galvanised, DIN EN 10147, Steel, St TP wall and ceiling bracket FS. TP wall and ceiling bracket with clamping lugs for screwless mesh cable tray fastening.

Cables > Wall- and ceiling bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A wall and ceiling strap for mesh cable tray provides structural anchoring support to secure wire baskets against vertical or horizontal building surfaces. Installers utilize these straps to prevent sagging along extended cable runs. The Obo Bettermann TPDG 345 FS ensures robust mounting stability in industrial settings.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,8649 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B345mm
  • Dimension B: 345 mm
  • Dimension L: 250 mm
  • F in kN ceiling: 0,5 kN
  • F in kN wall: 0,55 kN
  • for width max.: 300 mm
  • for width min.: 300
  • Height: 60 mm
  • Length: 175 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Suitable for cable ladder: no
  • Suitable for cable tray: no
  • Suitable for mesh cable tray: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,8649 kg CO2e / 1 Piece
Colourzinc
DimensionB345mm
Dimension B345 mm
Dimension L250 mm
F in kN ceiling0,5 kN
F in kN wall0,55 kN
for width max.300 mm
for width min.300
Height60 mm
Length175 mm
Maintain electrical functionsno
MaterialSteel
Suitable for cable ladderno
Suitable for cable trayno
Suitable for mesh cable trayyes
SurfaceStrip galvanized
Version forSuspension bracket (C clamp)
Width345 mm
