View larger
Images are for illustrative purposes only. Please refer to data sheet for details

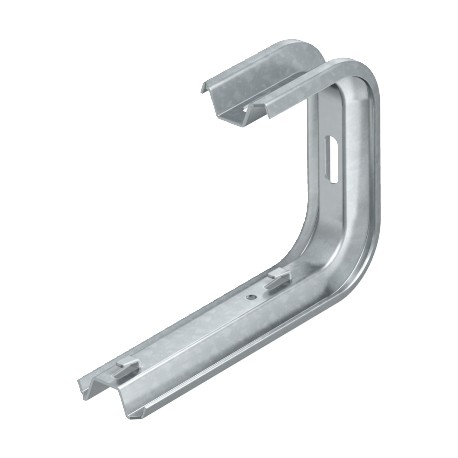

TPDG 245 FS 6365922 OBO BETTERMANN Wall and ceiling strap for mesh cable tray, B245mm, Strip-galvanised, DIN..
TPDG 245 FS
6365922
OBO BETTERMANN
5 Pcs.
Wall and ceiling strap for mesh cable tray, B245mm, Strip-galvanised, DIN EN 10147, Steel, St
TP wall and ceiling bracket FS. TP wall and ceiling bracket with clamping lugs for screwless mesh cable tray fastening.
Cables > Wall- and ceiling bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,544 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | B245mm |
| Dimension B | 245 mm |
| Dimension L | 150 mm |
| F in kN ceiling | 0,8 kN |
| F in kN wall | 0,87 kN |
| for width max. | 200 mm |
| for width min. | 200 |
| Height | 60 mm |
| Length | 175 mm |
|---|---|
| Maintain electrical functions | no |
| Material | Steel |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Suitable for mesh cable tray | yes |
| Surface | Strip galvanized |
| Version for | Suspension bracket (C clamp) |
| Width | 245 mm |
