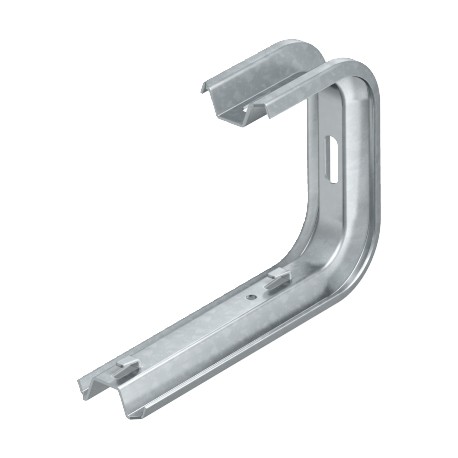

TPDG 145 FT 6365977 OBO BETTERMANN Wall and ceiling strap for mesh cable tray, B145mm, Hot-dip galvanised, D..
TPDG 145 FT
6365977
OBO BETTERMANN
6 Pcs.
Cables > Wall- and ceiling bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A wall and ceiling strap for mesh cable tray is utilized to anchor wire mesh trays securely to building surfaces, providing stable standoff support. The Obo Bettermann TPDG 145 FT offers robust steel construction tailored for industrial cable routing networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 1,1583 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: B145mm
- Dimension B: 145 mm
- Dimension L: 50 mm
- F in kN ceiling: 1,3 kN
- F in kN wall: 1,4 kN
- for width max.: 100 mm
- for width min.: 100
- Height: 60 mm
- Length: 175 mm
- Maintain electrical functions: no
- Material: Steel
- Suitable for cable ladder: no
- Suitable for cable tray: no
- Suitable for mesh cable tray: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,1583 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | B145mm |
| Dimension B | 145 mm |
| Dimension L | 50 mm |
| F in kN ceiling | 1,3 kN |
| F in kN wall | 1,4 kN |
| for width max. | 100 mm |
| for width min. | 100 |
| Height | 60 mm |
| Length | 175 mm |
|---|---|
| Maintain electrical functions | no |
| Material | Steel |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Suitable for mesh cable tray | yes |
| Surface | Hot-dip galvanised |
| Version for | Suspension bracket (C clamp) |
| Width | 145 mm |
