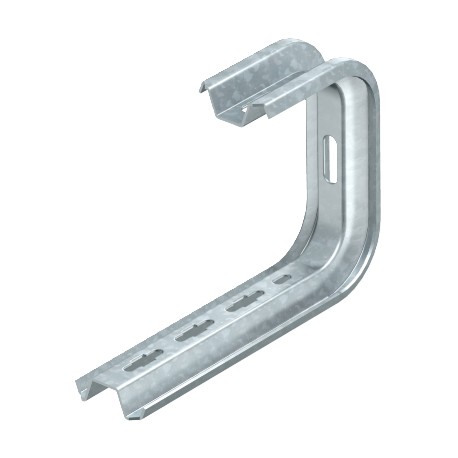

OBO BETTERMANN TPD 545 FS TPD 545 FS 6363829 OBO BETTERMANN Wall and ceiling strap TP profile, B545mm, Strip-galvanised, DIN EN 10147,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TPD 545 FS 6363829 OBO BETTERMANN Wall and ceiling strap TP profile, B545mm, Strip-galvanised, DIN EN 10147,..

TPD 545 FS

6363829

OBO BETTERMANN

1 Pcs.

Wall and ceiling strap TP profile, B545mm, Strip-galvanised, DIN EN 10147, Steel, St TP wall and ceiling bracket FS. TP wall and ceiling bracket for universal use.

Cables > Wall- and ceiling bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A wall and ceiling strap TP profile provides structural mounting points to secure heavy-duty cable support systems along walls or overhead surfaces. The Obo Bettermann TPD 545 FS ensures proper alignment and robust load distribution for complex runs of cable trays or ladders.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 2,5097 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B545mm
  • Dimension B: 545 mm
  • Dimension H: 175 mm
  • F in kN ceiling: 0,25 kN
  • F in kN wall: 0,35 kN
  • for width max.: 500 mm
  • for width min.: 500
  • Height: 60 mm
  • Length: 545 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes

More info

▲
Adjustableno
CO2 Footprint (GWP) Cradle-to-Gate2,5097 kg CO2e / 1 Piece
Colourzinc
DimensionB545mm
Dimension B545 mm
Dimension H175 mm
F in kN ceiling0,25 kN
F in kN wall0,35 kN
for width max.500 mm
for width min.500
Height60 mm
Length545 mm
Maintain electrical functionsno
MaterialSteel
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayyes
SurfaceStrip galvanized
Version forSuspension bracket (C clamp)
Width545 mm
