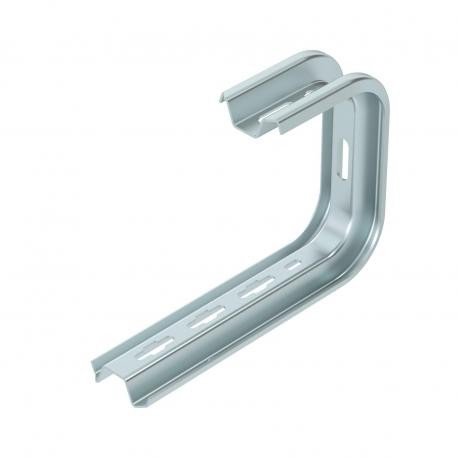

TPD 245 FS 6363814 OBO BETTERMANN Wall and ceiling strap TP profile, B245mm, Strip-galvanised, DIN EN 10147,..
TPD 245 FS
6363814
OBO BETTERMANN
1 Pcs.
Cables > Wall- and ceiling bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A wall and ceiling strap TP profile provides structural support for mounting cable trays and ladders directly against walls or suspension points. This Obo Bettermann TPD 245 FS hardware piece ensures dependable load-bearing stability for electrical routing layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Adjustable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 1,5397 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: B245mm
- Dimension B: 245 mm
- Dimension H: 175 mm
- F in kN ceiling: 0,8 kN
- F in kN wall: 0,87 kN
- for width max.: 200 mm
- for width min.: 200
- Height: 60 mm
- Length: 245 mm
- Maintain electrical functions: no
- Material: Steel
- Suitable for cable ladder: yes
- Suitable for cable tray: yes
More info
▲| Adjustable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5397 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B245mm |
| Dimension B | 245 mm |
| Dimension H | 175 mm |
| F in kN ceiling | 0,8 kN |
| F in kN wall | 0,87 kN |
| for width max. | 200 mm |
| for width min. | 200 |
| Height | 60 mm |
|---|---|
| Length | 245 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | yes |
| Surface | Strip galvanized |
| Version for | Suspension bracket (C clamp) |
| Width | 245 mm |
