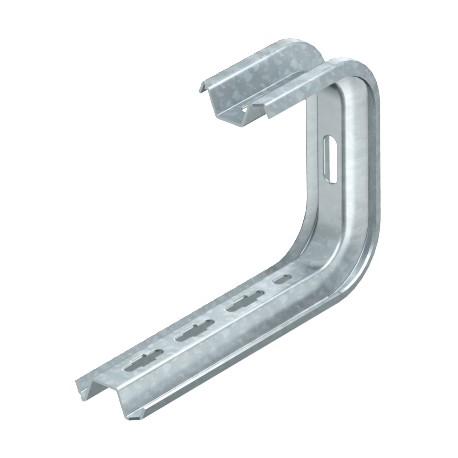

OBO BETTERMANN TPD 145 FS TPD 145 FS 6363806 OBO BETTERMANN Wall and ceiling strap TP profile, B145mm, Strip-galvanised, DIN EN 10147,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TPD 145 FS 6363806 OBO BETTERMANN Wall and ceiling strap TP profile, B145mm, Strip-galvanised, DIN EN 10147,..

TPD 145 FS

6363806

OBO BETTERMANN

1 Pcs.

Wall and ceiling strap TP profile, B145mm, Strip-galvanised, DIN EN 10147, Steel, St TP wall and ceiling bracket FS. TP wall and ceiling bracket for universal use.

Cables > Wall- and ceiling bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann TPD 145 FS Wall and ceiling strap TP profile, B145mm, Strip-galvanised, DIN EN 10147,.. facilitates secure fastening of cable supports along vertical walls and overhead concrete slabs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,2184 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B145mm
  • Dimension B: 145 mm
  • Dimension H: 175 mm
  • F in kN ceiling: 1,3 kN
  • F in kN wall: 1,4 kN
  • for width max.: 100 mm
  • for width min.: 100
  • Height: 60 mm
  • Length: 145 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes

More info

▲
Adjustableno
CO2 Footprint (GWP) Cradle-to-Gate1,2184 kg CO2e / 1 Piece
Colourzinc
DimensionB145mm
Dimension B145 mm
Dimension H175 mm
F in kN ceiling1,3 kN
F in kN wall1,4 kN
for width max.100 mm
for width min.100
Height60 mm
Length145 mm
Maintain electrical functionsno
MaterialSteel
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayyes
SurfaceStrip galvanized
Version forSuspension bracket (C clamp)
Width145 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
