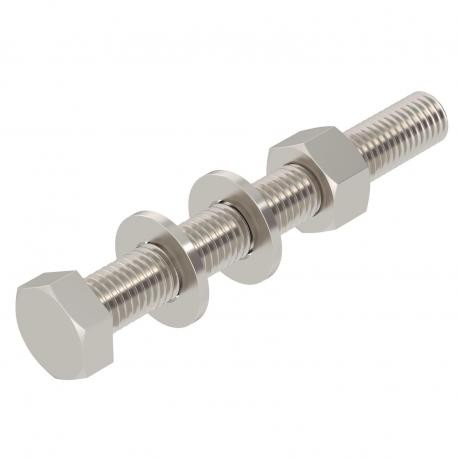

SKS 12X100VA4301 6418368 OBO BETTERMANN Hexagonal screw nut, washers + serrated washer, M12x100, Stainless s..
SKS 12x100 A2
6418368
OBO BETTERMANN
20 Pcs.
Automation > Hexagon head bolt
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-strength connections in corrosive environments, the Obo Bettermann SKS 12x100 A2 hexagonal screw secures heavy equipment brackets and structural supports. Hexagonal fasteners allow high torque application for rigid mechanical assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,6068 kg CO2e / 1 Piece
- Colour: stainless steel
- Dimension: M12x100
- Dimension d: 12 mm
- Dimension L: 100 mm
- Full thread: yes
- Left thread: no
- Length: 100 mm
- Material: Stainless steel 1.4301
- Resistance grade: A2-70
- Screw system: Hexagonal
- Self-locking: no
- Surface: Bright, treated
- Thread: M 12 x 100
- Thread increase: 1,75 mm
- Thread length: 100 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,6068 kg CO2e / 1 Piece |
|---|---|
| Colour | stainless steel |
| Dimension | M12x100 |
| Dimension d | 12 mm |
| Dimension L | 100 mm |
| Full thread | yes |
| Left thread | no |
| Length | 100 mm |
| Material | Stainless steel 1.4301 |
| Resistance grade | A2-70 |
| Screw system | Hexagonal |
| Self-locking | no |
|---|---|
| Surface | Bright, treated |
| Thread | M 12 x 100 |
| Thread increase | 1,75 mm |
| Thread length | 100 mm |
| Thread metric | 12 |
| Thread type | Metric |
| WAF | 19 |
| With flange | no |
| With nut | yes |
| With washer | yes |
