View larger
Images are for illustrative purposes only. Please refer to data sheet for details

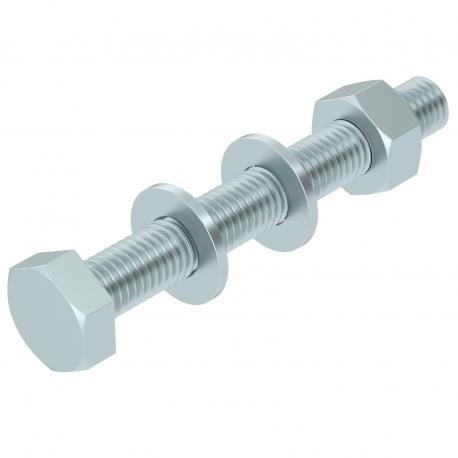

SKS 10X80 F 6418250 OBO BETTERMANN Hexagonal screw nut, washers + serrated washer, M10x80, Hot-dip galvanise..
SKS 10x80 F
6418250
OBO BETTERMANN
20 Pcs.
Hexagonal screw nut, washers + serrated washer, M10x80, Hot-dip galvanised, DIN 267, Teil 10, Steel, St
Hexagonal bolt M10 F. Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
Automation > Hexagon head bolt
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,1754 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | M10x80 |
| Dimension d | 10 mm |
| Dimension L | 80 mm |
| Full thread | yes |
| Left thread | no |
| Length | 80 mm |
| Material | Steel |
| Resistance grade | 8.8 |
| Screw system | Hexagonal |
| Self-locking | no |
|---|---|
| Surface | Hot galvanized |
| Thread | M 10 x 80 |
| Thread increase | 1,5 mm |
| Thread length | 80 mm |
| Thread metric | 10 |
| Thread type | Metric |
| WAF | 17 |
| With flange | no |
| With nut | yes |
| With washer | yes |
