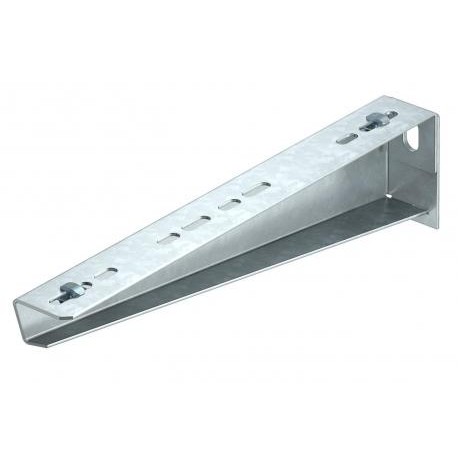

OBO BETTERMANN MWAM 12 31 FS MWAM 12 31 FS 6424554 OBO BETTERMANN Wall and support bracket including quick fastening, B310mm, Strip-galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MWAM 12 31 FS 6424554 OBO BETTERMANN Wall and support bracket including quick fastening, B310mm, Strip-galva..

MWAM 12 31 FS

6424554

OBO BETTERMANN

1 Pcs.

Wall and support bracket including quick fastening, B310mm, Strip-galvanised, DIN EN 10147, Steel, St Wall bracket/profile MWAM 12 31 FS, w/quick fix screw B310mm Steel, St, strip galvanized, DIN EN 10346 Bracket for wall/profile MWAM 12. Wall/profile bracket for light loads, including quick fixing, folded model for mounting on RKSM cable tray.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Incorporating a quick fastening mechanism, the Obo Bettermann MWAM 12 31 FS wall and support bracket simplifies the installation of mesh cable trays.

Cantilever mounting brackets provide dependable horizontal extensions from walls, allowing efficient routing of cable infrastructure in commercial buildings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 38 mm
  • Width (EF000008): 310 mm
  • Height (EF000040): 75 mm
  • Model (EF000010): Cantilever arm for wall and channel mounting
  • Angle (EF005434): 90 °
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Pre-galvanised

More info

▲
Wall and support bracket MWAM.. including:
1. Two pre-mounted quick connectors for efficient cable tray fastening.
2. Truss-head bolt M10 x 25 for fastening on the U support.
