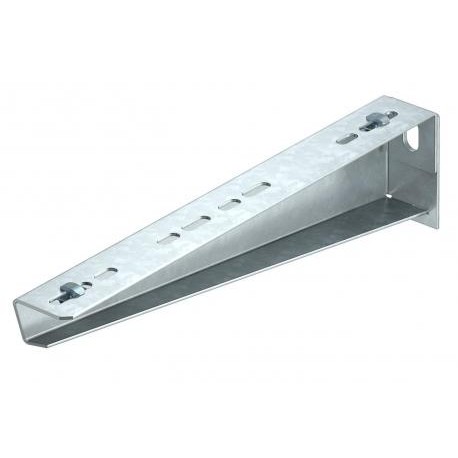

MWAM 12 11 FS 6424550 OBO BETTERMANN Wall and support bracket including quick fastening, B110mm, Strip-galva..
MWAM 12 11 FS
6424550
OBO BETTERMANN
1 Pcs.
Wall and support bracket including quick fastening, B110mm, Strip-galvanised, DIN EN 10147, Steel, St
Wall and support bracket MWAM 12. Light-duty wall and support bracket including quick connector for use with cable trays of type RKSM.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5312 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B110mm |
| Dimension A | 32,5 mm |
| Dimension B | 110 mm |
| Dimension H | 53 mm |
| Dimension W | 110 mm |
| F in kN | 1,2 kN |
| Height | 53 mm |
| Height | 2,09 in |
|---|---|
| Hole diameter | 11 mm |
| Length | 32,5 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Strip galvanized |
| Version for | Wall and support bracket |
| Width | 4 in |
| Width | 110 mm |
