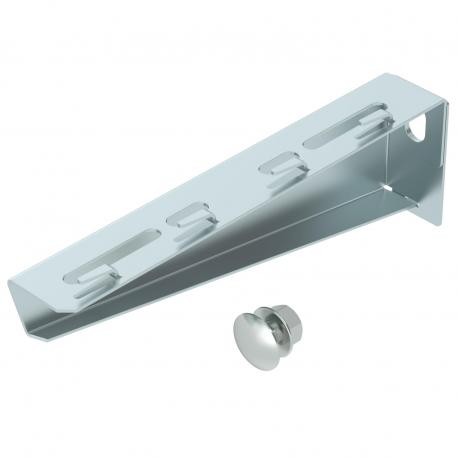

MWAG 12 21 FS 6424608 OBO BETTERMANN Wall and support bracket for mesh cable tray, B210mm, Strip-galvanised,..
MWAG 12 21 FS
6424608
OBO BETTERMANN
1 Pcs.
Wall and support bracket for mesh cable tray, B210mm, Strip-galvanised, DIN EN 10147, Steel, St
Wall and support bracket MWAG 12. Light-duty wall and support bracket with edged design for screwless mesh cable tray fastening.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7514 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B210mm |
| Dimension A | 32,5 mm |
| Dimension B | 210 mm |
| Dimension H | 65 mm |
| F in kN | 1,2 kN |
| for width max. | 200 mm |
| for width min. | 200 |
|---|---|
| Height | 65 mm |
| Hole diameter | 11 mm |
| Length | 32,5 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Strip galvanized |
| Version for | Wall and support bracket |
| Width | 210 mm |
