View larger
Images are for illustrative purposes only. Please refer to data sheet for details

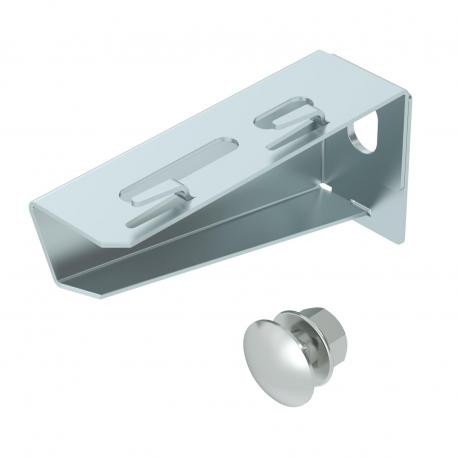

MWAG 12 11 FS 6424600 OBO BETTERMANN Wall and support bracket for mesh cable tray, B110mm, Strip-galvanised,..
MWAG 12 11 FS
6424600
OBO BETTERMANN
1 Pcs.
Wall and support bracket for mesh cable tray, B110mm, Strip-galvanised, DIN EN 10147, Steel, St
MWAG 12 11 FS wall/profile bracket, for B110mm Steel, St, strip galvanized, DIN EN 10346
Bracket for wall/profile MWAG 12 FS. Wall/profile bracket for light loads, edged model for fixing grid tray without screws.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Including truss-head bolt M10 x 25 for fastening to
Or vertical supports.
Or vertical supports.
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 32.5 mm |
| Width (EF000008) | 110 mm |
| Height (EF000040) | 53 mm |
| Suitable for cable support system width (EF008339) | 100 mm |
| Model (EF000010) | Cantilever arm for wall and channel mounting |
| Angle (EF005434) | 90 ° |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
