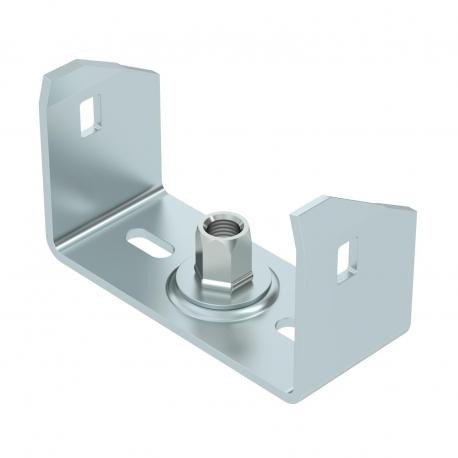

OBO BETTERMANN MAH 60 100 FS MAH 60 100 FS 6358705 OBO BETTERMANN Centre suspension for cable tray, B100mm, Strip-galvanised, DIN EN 1014.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MAH 60 100 FS 6358705 OBO BETTERMANN Centre suspension for cable tray, B100mm, Strip-galvanised, DIN EN 1014..

MAH 60 100 FS

6358705

OBO BETTERMANN

1 Pcs.

Centre suspension for cable tray, B100mm, Strip-galvanised, DIN EN 10147, Steel, St Central hanger for cable tray, side height 60 mm FS. Centre suspension for cable trays with rolled side rail of side height 60 mm.

Cables > Wall- and ceiling bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A centre suspension for cable tray functions as an essential hanging bracket to support electrical cable runs safely from overhead structures. This Obo Bettermann MAH 60 100 FS model is built to maintain circuit integrity and provide sturdy weight distribution for standard installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,5365 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B100mm
  • Dimension B: 94 mm
  • Dimension b: 84 mm
  • Dimension B1: 84 mm
  • F in kN: 1,3 kN
  • for width max.: 100 mm
  • for width min.: 100
  • Height: 57 mm
  • Hole diameter: 10,5 mm
  • Length: 40 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Suitable for cable ladder: no

More info

▲
Adjustableno
CO2 Footprint (GWP) Cradle-to-Gate0,5365 kg CO2e / 1 Piece
Colourzinc
DimensionB100mm
Dimension B94 mm
Dimension b84 mm
Dimension B184 mm
F in kN1,3 kN
for width max.100 mm
for width min.100
Height57 mm
Hole diameter10,5 mm
Length40 mm
Maintain electrical functionsyes
MaterialSteel
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
Suitable for metric threaded rod10
SurfaceStrip galvanized
Version forSuspended
Width100 mm
Width4 in
