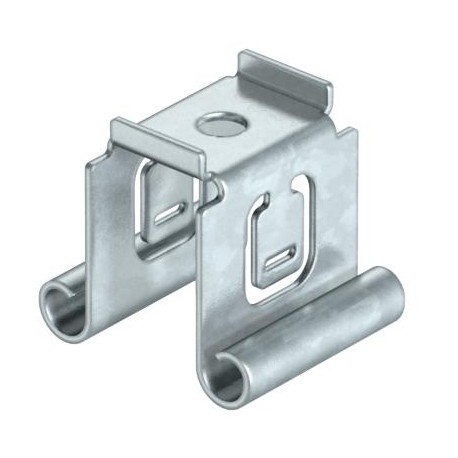

OBO BETTERMANN MAH 100 FS MAH 100 FS 6358527 OBO BETTERMANN Centre suspension for cable tray, B100mm, Strip-galvanised, DIN EN 10147, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MAH 100 FS 6358527 OBO BETTERMANN Centre suspension for cable tray, B100mm, Strip-galvanised, DIN EN 10147, ..

MAH 100 FS

6358527

OBO BETTERMANN

1 Pcs.

Centre suspension for cable tray, B100mm, Strip-galvanised, DIN EN 10147, Steel, St Centre suspension for cable trays with rolled side rail FS. Centre suspension for cable trays for attachment from the side rail of the cable tray.

Cables > Wall- and ceiling bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A centre suspension for cable tray is utilized to mount and balance cable runs securely underneath structural ceilings using threaded rods. This Obo Bettermann MAH 100 FS element guarantees stable alignment for narrow cable runs in various electrical distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2064 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B100mm
  • Dimension B: 97 mm
  • Dimension B1: 76 mm
  • for width max.: 100 mm
  • for width min.: 100
  • Height: 39,5 mm
  • Hole diameter: 8,5 mm
  • Length: 40 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Suitable for metric threaded rod: 8
  • Surface: Strip galvanized
  • Version for: Suspended

More info

▲
Adjustableno
CO2 Footprint (GWP) Cradle-to-Gate0,2064 kg CO2e / 1 Piece
Colourzinc
DimensionB100mm
Dimension B97 mm
Dimension B176 mm
for width max.100 mm
for width min.100
Height39,5 mm
Hole diameter8,5 mm
Length40 mm
Maintain electrical functionsno
MaterialSteel
Suitable for metric threaded rod8
SurfaceStrip galvanized
Version forSuspended
Width100 mm
Width4 in
