KWS 10 FT 6355226 OBO BETTERMANN Clamping profile with hexagon screw, h 10 mm, 60x50, Hot-dip galvanised, DI..
KWS 10 FT
6355226
OBO BETTERMANN
10 Pcs.

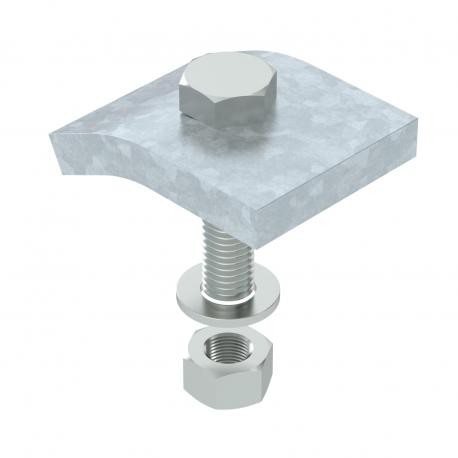

Clamping profile with hexagon screw, h = 10 mm, 60x50, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Clamping bracket KWS 10 FT, w/screw cab.hexag., h=10 mm 60x50 Steel, St, Hot-dip galvanized, DIN EN ISO 1461
Clamping angle KWS FT. Clamping angle, with hexagonal bolt, type KWS, for direct fixing of constructions to steel girder flanges.
Automation > Screw clamp
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann clamping profile with hexagon screw provides rigid mechanical clamping force for industrial channel and support systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Material (EF002169): Steel
- Surface protection (EF000139): Hot dip galvanized
- Thread size (metric) (EF003563): 12
More info
▲| Bolt | M12 x 50 |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4473 kg CO2e / 2 Piece |
| Colour | zinc |
| Dimension | 60x50 |
| F in kN | 5,7 kN |
| Height | 10 mm |
|---|---|
| Material | Steel |
| Surface | Hot-dip galvanised |
| Thread metric | 12 |
