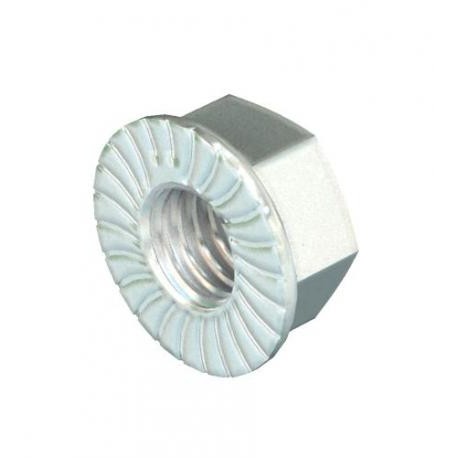

KM M6 A2 6408966 OBO BETTERMANN Combined nut with press-fitted washer, M6, Stainless steel, grade 304, VA, 1..
KM M6 A2
6408966
OBO BETTERMANN
100 Pcs.
Automation > Nut
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for secure mechanical locking, the KM M6 A2 6408966 OBO BETTERMANN Combined nut with press-fitted washer, M6, Stainless steel, grade 304, VA, 1.. is a specialized threaded fastener used in machinery and electrical framing to prevent loosening under heavy vibration. The integrated washer design distributes clamping force evenly across joined surfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Nut
- Self-locking (EF006319): Yes
- Screwing system (EF000013): Outside hexagon
- Material (EF002169): Stainless steel
- Material quality (EF001257): Stainless steel 304 (1.4301)
- Surface protection (EF000139): Untreated
- Thread size (metric) (EF003563): 6
- Thread size (imperial) (EF003715): 1/4 inch
- Wrench width (EF000177): 10 mm
- Thread type (EF001758): Metric
- Left-handed thread (EF022707): No
- Halogen free (EF000025): Yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0158 kg CO2e / 1 Piece |
|---|---|
| Colour | stainless steel |
| Dimension | M6 |
| Dimension d | 6 mm |
| Dimension h | 6 mm |
| Halogen-free | yes |
| Left thread | no |
| Material | Stainless steel 1.4301 |
| Nut version | Nut |
| Screw system nut | Hexagon head |
|---|---|
| Self-locking | yes |
| Surface | Bright, treated |
| Thread | M6 |
| Thread metric | 6 |
| Thread type | Metric |
| Thread, imperial | 1/4" |
| WAF | 10 |
