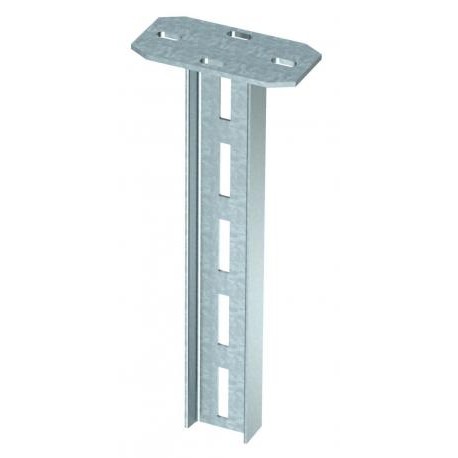

IS 8 K 170 FT 6361366 OBO BETTERMANN Suspended support with welded head plate, 80x42x1700, Hot-dip galvanise..
IS 8 K 170 FT
6361366
OBO BETTERMANN
1 Pcs.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann IS 8 K 170 FT suspended support with welded head plate serves as a primary support element used to suspend cable trays and heavy electrical distribution routes from overhead structures. These steel profiles provide a sturdy framework for complex cable routing paths in large facility infrastructures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bracket length 200: 9,6 kN
- Bracket length 400: 7 kN
- Bracket length 600: 5 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 25,969 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: 80x42x1700
- Height: 42 mm
- Hole width: 14 mm
- Length: 1700 mm
- Maintain electrical functions: no
- Material: Steel
- Material thickness: 4 mm
- Maximum tensile load: 12 kN
- Slot width: 70 mm
- Surface: Hot-dip galvanised
- Version for: I profile
More info
▲| Bracket length 200 | 9,6 kN |
|---|---|
| Bracket length 400 | 7 kN |
| Bracket length 600 | 5 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 25,969 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 80x42x1700 |
| Height | 42 mm |
| Hole width | 14 mm |
| Length | 1700 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Steel |
| Material thickness | 4 mm |
| Maximum tensile load | 12 kN |
| Slot width | 70 mm |
| Surface | Hot-dip galvanised |
| Version for | I profile |
| Width | 80 mm |
| With toothing | no |
