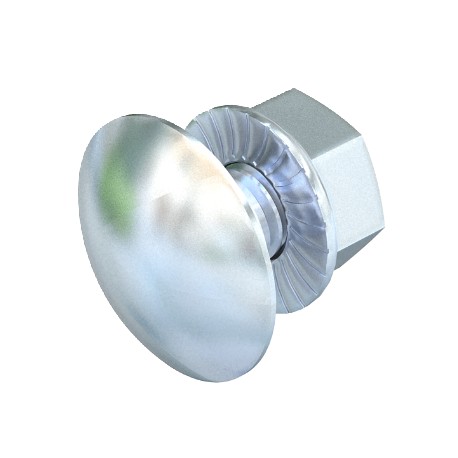

OBO BETTERMANN FRSB 6x12 F FRSB 6X12 F 6406122 OBO BETTERMANN Truss-head bolt with combination nut, M6x12, Hot-dip galvanised, DIN 267,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FRSB 6X12 F 6406122 OBO BETTERMANN Truss-head bolt with combination nut, M6x12, Hot-dip galvanised, DIN 267,..

FRSB 6x12 F

6406122

OBO BETTERMANN

100 Pcs.

Truss-head bolt with combination nut, M6x12, Hot-dip galvanised, DIN 267, Teil 10, Steel, St Truss-head bolt with flange nut F. Truss-head bolt with square neck including flange nut.

Automation > Mushroom head bolt
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A truss-head bolt with combination nut combines a rounded low-profile head with an integrated nut for fast installation in industrial mounting applications. The Obo Bettermann FRSB 6x12 F fastener delivers reliable holding force across metallic profiles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0184 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: M6x12
  • Dimension d: 6 mm
  • Dimension D: 13,5 mm
  • Dimension L: 12 mm
  • Full thread: yes
  • Left thread: no
  • Length: 12 mm
  • Material: Steel
  • Resistance grade: 5.6
  • Screw system: Miscellaneous
  • Self-locking: no
  • Surface: Hot galvanized
  • Thread metric: 6
  • Thread type: Metric

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0184 kg CO2e / 1 Piece
Colourzinc
DimensionM6x12
Dimension d6 mm
Dimension D13,5 mm
Dimension L12 mm
Full threadyes
Left threadno
Length12 mm
MaterialSteel
Resistance grade5.6
Screw systemMiscellaneous
Self-lockingno
SurfaceHot galvanized
Thread metric6
Thread typeMetric
WAF10
With flangeno
With nutyes
With washerno
