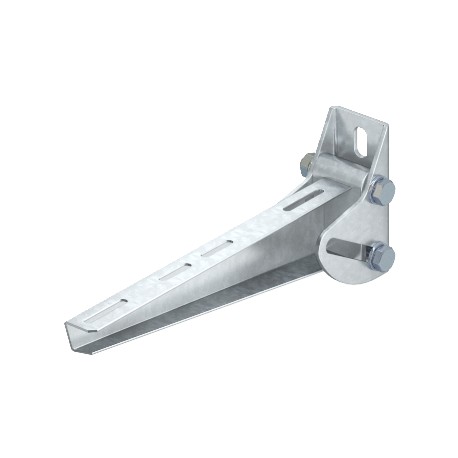

OBO BETTERMANN AWV 31 FT AWV 31 FT 6419550 OBO BETTERMANN Wall bracket, variable , B310mm, Hot-dip galvanised, DIN EN ISO 1461, Steel.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AWV 31 FT 6419550 OBO BETTERMANN Wall bracket, variable , B310mm, Hot-dip galvanised, DIN EN ISO 1461, Steel..

AWV 31 FT

6419550

OBO BETTERMANN

5 Pcs.

Wall bracket, variable , B310mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall bracket, variable AWV FT. Variable wall bracket for fixing to sloping or vaulted walls.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann AWV 31 FT is a wall bracket, variable designed for mounting cable management systems securely to vertical surfaces in industrial and commercial installations. Brackets of this type provide reliable horizontal extension support for cable trays and ladder routes along walls and structural bulkheads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 4,3534 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B310mm
  • Dimension A: 60 mm
  • Dimension B: 310 mm
  • Dimension H: 130 mm
  • F in kN: 0,9 kN
  • for width max.: 90 mm
  • for width min.: 60
  • Height: 130 mm
  • Hole diameter: 13 mm
  • Length: 60 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rustproof steel, pickled: no
  • Surface: Hot-dip galvanised

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,3534 kg CO2e / 1 Piece
Colourzinc
DimensionB310mm
Dimension A60 mm
Dimension B310 mm
Dimension H130 mm
F in kN0,9 kN
for width max.90 mm
for width min.60
Height130 mm
Hole diameter13 mm
Length60 mm
Maintain electrical functionsno
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forWall brackets
Width310 mm
