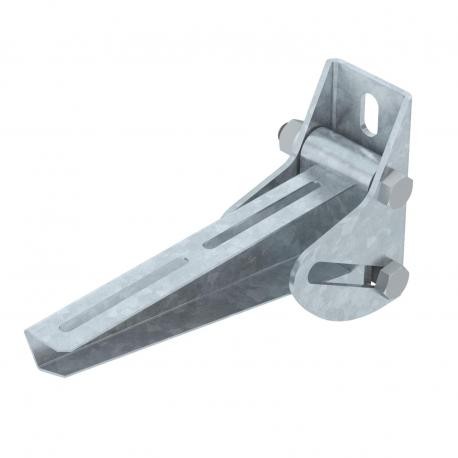

AWV 21 FT 6419534 OBO BETTERMANN Wall bracket, variable , B210mm, Hot-dip galvanised, DIN EN ISO 1461, Steel..
AWV 21 FT
6419534
OBO BETTERMANN
1 Pcs.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann variable wall bracket AWV 21 FT allows flexible angle adjustments for specialized cable tray routing requirements.
Adjustable brackets facilitate custom mounting configurations where standard fixed-angle supports cannot accommodate site geometry. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 3,8735 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: B210mm
- Dimension A: 60 mm
- Dimension B: 210 mm
- Dimension H: 130 mm
- F in kN: 0,9 kN
- for width max.: 90 mm
- for width min.: 60
- Height: 130 mm
- Hole diameter: 13 mm
- Length: 60 mm
- Maintain electrical functions: no
- Material: Steel
- Rustproof steel, pickled: no
- Surface: Hot-dip galvanised
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,8735 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | B210mm |
| Dimension A | 60 mm |
| Dimension B | 210 mm |
| Dimension H | 130 mm |
| F in kN | 0,9 kN |
| for width max. | 90 mm |
| for width min. | 60 |
| Height | 130 mm |
|---|---|
| Hole diameter | 13 mm |
| Length | 60 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Hot-dip galvanised |
| Version for | Wall brackets |
| Width | 210 mm |
